| Porting guide 429/460 pictorial |
| pg 10 |

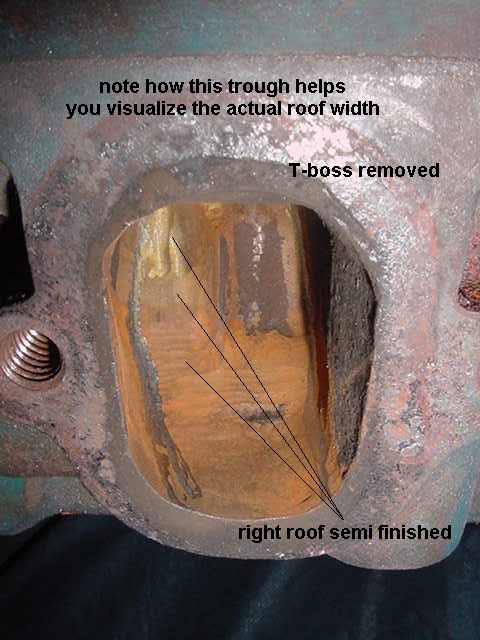

| Here are some additional pics of roof work. As this step is hard to articulate in text, the extra pics will I hope clarify the rotating of steps to achieve your final roof contours |
| By this point your exit shape should be roughed in to your header gasket so you have an idea what your exit size will be. |

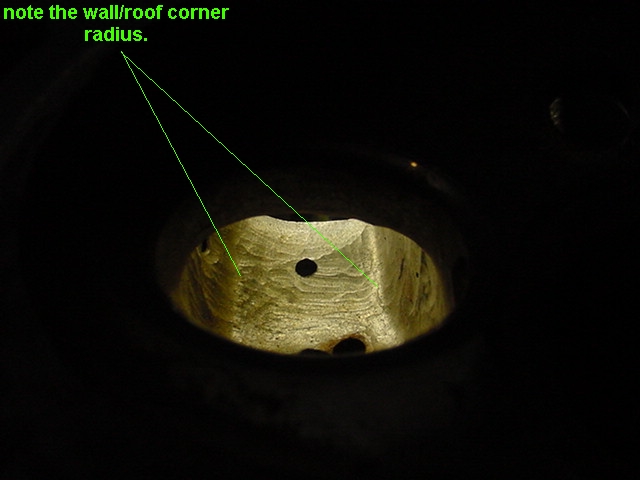

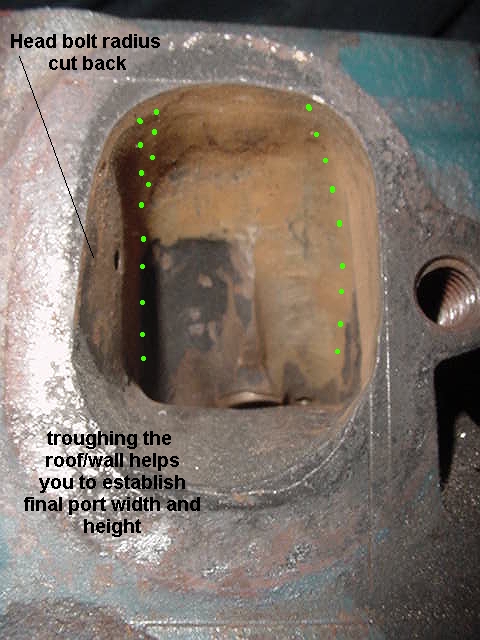

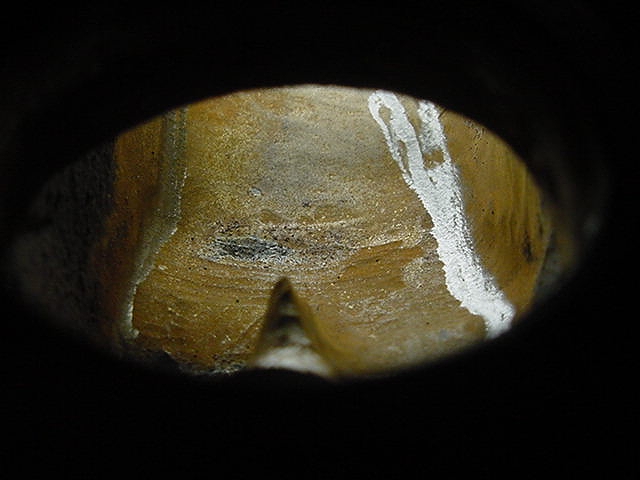

| Arriving at your final exit width and height involves rotating from roof to wall. then troughing the corner radii and checking roof shape to exit. Roof width at the corner radii should be consistant from pocket transition to exit |

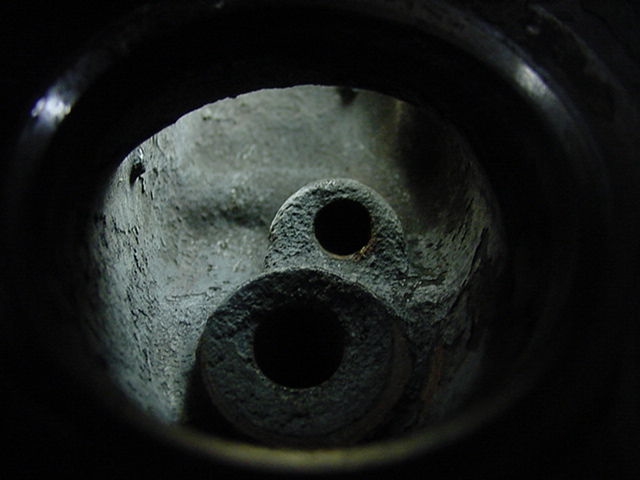

| In the as cast port, the cross sectional width narrows from a rather generous pocket to the exit |
| See the later porting guides for the most up to date information. It is highly recommended that you read all porting information available "Before" starting your porting projects. Go back to the index and then to the 429 / 460 index |
