| E7TE "Fuelie" 460 truck heads Flow figures as cast and ported |
| @ 28" water |
Valve lift As cast ported w 2.19" / Int vs exh flow % int / exh int / exh. 1.76" valves cfm cfm RHP ports F3 0.1" 58 / 42 74 / 54 87 / 82 72% 94% 72% 0.2" 117 / 88 147 / 103 163 / 116 75% 71% 70% 0.3" 174 / 117 211 / 137 227 / 150 67% 66% 64% 0 4" 196 / 131 263 / 169 275 / 175 66% 63% 63% 0.5" 224 / 137 289 / 191 305 / 199 61% 65% 66% 0.6" 239 / 141 303 / 206 316 / 215 58% 68% 67% 0.7" 247 / 142 312 / 219 326 / 222 57% 68% 70% 179 / 114 ave 228 / 154 ave. 242 / 165 65% ave. 67% ave. |
 |
 |
|
|
|
|
| Ported these heads have great street stormer potential |
| For those of you who haven't seen these castings. The intake port has been raised and has a better approach to the valve pocket. It is on the smallish side as cast. Very high velocity though Intake valve size is 2.0" until '93 when it was increased to 2.08" |

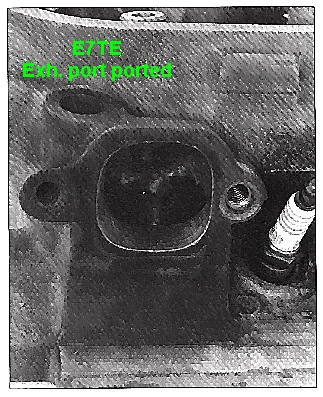

| The exhaust port has been completely revised. The floor is filled and raised as is the port roof. The exhaust flange centers are the same as the earlier castings as are the exhaust bolt centers. |
| They also use center bolt valve covers |
| home |
 |
 |
 |
 |
 |
 |
 |
 |
| E7TE As cast |
|
| . |
 |
